The AFT-BG-47 bank customer service telephone can be compatible with many brands of program-controlled telephone exchanges on the market. It is a dedicated direct telephone for bank ATM self-service branches, bank business halls, tax authorities, people's courts, and government platforms without dialing. It is a bonus for bank star rating network review and is an important part of enhancing the service image of enterprises, institutions, and government agencies. Mainly suitable for unmanned areas such as public places and self-service outlets.
Product Features
1. Made of cold-rolled steel material, the surface is sprayed with high-end outdoor powder paint, which has the characteristics of cold resistance, frost resistance, dust prevention, moisture resistance, wear resistance, and resistance to violent impact; The handle is made of German Bayer ABS+PC alloy material and adopts an integrated vacuum formed structure. Internally, military grade earphones are selected and equipped with permanent magnet steel. It has the characteristics of explosion-proof, waterproof, moisture-proof, dustproof, noise resistant, cold resistant, frost resistant, and anti violent impact;
2. The hook is made of zinc alloy stamping, and undergoes surface treatment processes such as polishing and electroplating. The back is encapsulated with imported reed switches, which can be used in conjunction with the built-in permanent magnet steel of the handle to achieve off hook/on hook switching. Hooks have characteristics such as cold resistance, frost resistance, oxidation resistance, corrosion resistance, and salt spray resistance;
3. The buttons are made of zinc alloy stamping, and undergo a series of processing techniques such as polishing, electroplating, and dripping (oil coating) to match the gold-plated PCB board. They have good hand feel, excellent electrical performance, and a service life of ≥ 500000 times;
4. The telephone motherboard is developed using imported microcontrollers and chips ground by the company. All components are made using SMT surface mount technology, which has rich functions and high integration. Two dry node interfaces, one on and one off, are reserved to enhance the linkage with external devices;
5. The overall protection level of the phone is IP54. If it needs to be installed outdoors, a rain cover needs to be added.
Introduction to Phone Functions (Due to the high integration of the motherboard, please confirm the specific functions before leaving the factory)
1. Regular dialing: After picking up the phone, dial by yourself through the keyboard;
2. One click dialing: The phone supports up to four sets of number storage, and the numbers are permanently saved after being set, and will not be lost in case of power failure. When in use, simply press the "Off hook ->Select the button to store the number" to dial it out;
3. Automatic dialing: After picking up the phone, the speaker will automatically dial a set of pre stored numbers; Support manual dialing of emergency calls such as 110119120 within the first three seconds after off hook;
4. Redial and Flashing: After picking up the phone, press the "Redial" button to dial the last dialed number. During the call, press the "Flashing" button to return to the waiting dialing state after picking up the phone;
5. Automatic AFK: After the call ends, this call will automatically detect the busy tone signal and reverse limit signal of the switch, confirm multiple times, and then AFK;
6. Linkage function: This phone reserves two disconnection nodes, one on and one off. When the phone is off/on hook, the two main nodes provide two sets of pulse switch signals, one on and one off, respectively;
7. LOGO customization: LOGO identification and operation instructions can be customized according to requirements;
8. More functions can be customized according to your requirements. Please communicate with the company's business personnel in advance to ensure that this phone can meet your needs.
Specific parameters

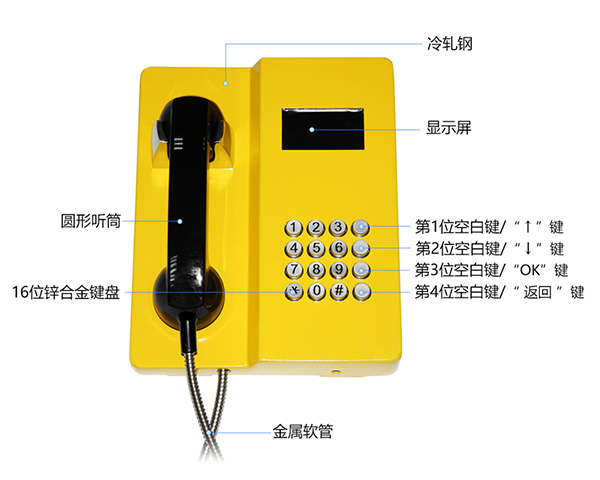

Structure diagram
产品包装规格
规格：1台/箱
毛重：4.5 KG
净重：4.0KG
包装：珍珠棉、纸箱
