Product Overview
The telephone can be compatible with many brands of digital programmable telephone switches or IPPBX on the market. It is an emergency call telephone specifically designed for pharmaceutical cleanrooms, dust-free workshops, stations, airports, and other places. This telephone has the characteristics of one click automatic alarm and automatic intercom. It is an essential communication device for emergency assistance in public places and a convenient communication device for clean room intercom.

Main features
1. Made of 304 stainless steel material with fine wire drawing treatment on the surface, it has the characteristics of waterproof, dustproof, moisture-proof, corrosion-resistant, and resistant to violent impact;
2. The emergency button is a self resetting luminous button produced by the most professional manufacturer in China. It is made of 304 stainless steel material and has the characteristics of waterproofing, moisture-proof, and dustproof;
3. The telephone motherboard adopts imported microcontrollers and self-developed chips by the company. All components adopt SMT mounting technology, which has rich functions and high integration. It also reserves two dry node interfaces, one on and one off, to enhance the linkage with external devices;
4. The buttons adopt a 12 bit matrix design and are made of 304 stainless steel material as a whole. After multiple processes such as stamping, polishing, wire drawing, and oiling (dripping glue), they have characteristics such as dust prevention, corrosion resistance, and oxidation resistance, with a service life of ≥ 500000 times;
5. The overall protection level of the phone is IP54, and it can be wiped with a damp cloth, but cannot be soaked in water.

Introduction to Phone Functions (Note: Some functions can only be selected from two options, please communicate with the marketing department personnel in advance)

1. Emergency alarm: After pressing the hands-free button, the phone will automatically dial the emergency alarm phone number, such as 110;
2. Automatic response: As called, the phone detects the called signal and can automatically connect. The ringing time can be set by oneself;
3. IP point-to-point calling: supports IP address calling, i.e. IP address point-to-point intercom;
4. Linkage function: This phone reserves a dry node signal, which can be linked with external devices such as cameras;
5. Logo customization: The logo logo logo and operating instructions can be customized according to requirements;
6. Support customization of external dimensions and color customization.

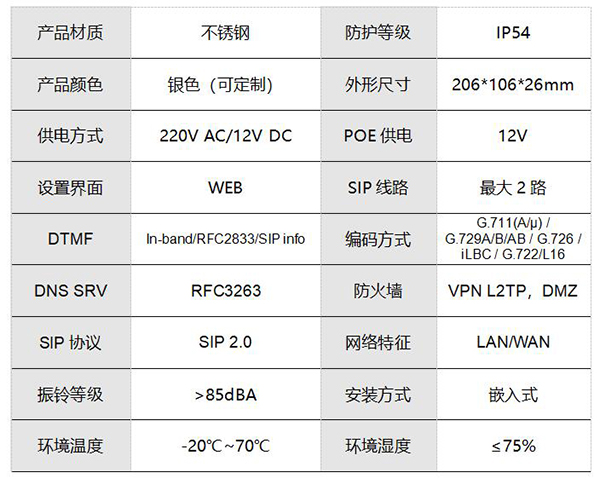

Specific parameters

Structure diagram

Install
a. After unpacking, use a screwdriver to unscrew the fixing screws of the bottom shell;
b. Make a square groove on the wall according to the size of the bottom shell, and drill 4 holes on the wall according to the fixed size of the bottom shell φ 6 holes, insert rubber plugs (if it is an elevator car, drill 4 M4 holes and thread or weld 4 M4 nuts)
c. Connect the network cable to the telephone motherboard through the bottom shell inlet hole;
d. Insert the bottom shell of the telephone into the wall and fix it with a screwdriver, then close the panel onto the bottom shell.
