Product Introduction
The AFT-QR-A16 emergency telephone can be compatible with numerous digital program-controlled telephone exchanges or IPPBX brands on the market. It is specially designed for emergency assistance in pharmaceutical clean rooms, dust-free workshops, stations, airports, and other places. This telephone has the characteristics of one button automatic alarm and automatic intercom. It is an essential communication device for emergency assistance in public places and a convenient communication device for clean room intercom.
Product Features
1. 304 stainless steel material, with fine grain wire drawing treatment on the surface, with characteristics such as waterproof, dustproof, moisture-proof, corrosion-resistant, and brute force impact resistance;
2. The telephone motherboard is developed using imported microcontrollers in conjunction with the company's self-developed chips. All components adopt SMT chip mounting technology, which has rich functions and high integration. It also reserves two dry node interfaces, one on and one off, to enhance linkage with external devices;
3. The buttons adopt a 16 bit matrix design, and the overall material is made of 304 stainless steel. After multiple processes such as stamping, polishing, wire drawing, and applying oil (dripping glue), they have characteristics such as dust prevention, corrosion resistance, and oxidation resistance, with a service life of ≥ 500000 times;
4. The overall protection level of the phone is IP54, and it can be wiped with a damp cloth, but cannot be soaked in water;
5. 2-speed sound size adjustment mode, which can be adjusted according to needs.
Introduction to the functions of the phone (note: some functions can only be chosen between two, please communicate with marketing personnel in advance)
1. Automatic response: As a called person, the phone detects the called signal and can automatically connect. The ringing time can be set by oneself;
2. IP peer-to-peer calling: supports IP address calling, i.e. IP address point-to-point intercom;
3. Linkage function: This phone reserves a trunk node signal, which can be linked with external devices such as cameras;
4. Customization of logo: The logo logo logo and operating instructions can be customized according to requirements;
5. Support customization of external dimensions and color customization.

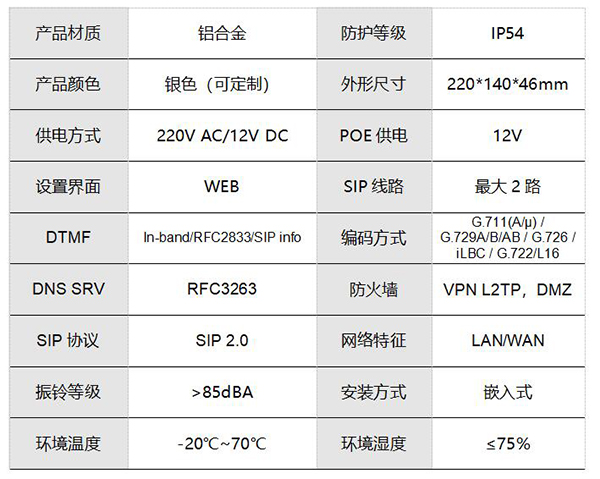

Specific parameters

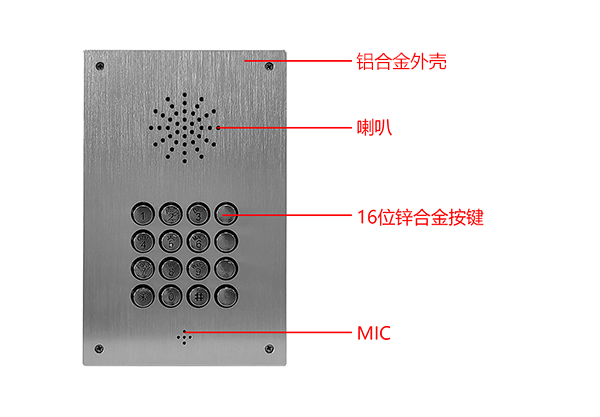

Structure diagram

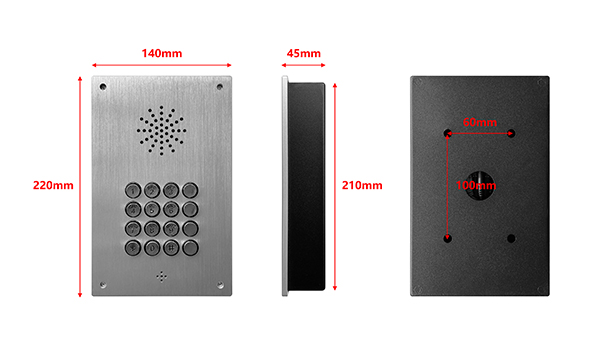

Installation diagram
a. After unpacking, use a screwdriver to unscrew the phone;
b. Make a groove on the wall according to the size of the bottom shell, and drill 4 holes on the wall according to the fixed size of the bottom shell φ 6 holes, insert rubber plugs (if it is an elevator car, drill 4 M4 holes and thread or weld 4 M4 nuts);
c. Connect the network cable to the telephone motherboard through the bottom shell inlet hole;
d. Insert the bottom shell of the telephone into the wall and fix it with a screwdriver, then close the panel and screw in the bottom shell.
Product packaging specifications
1. Emergency call telephone, 1 piece
2. Power adapter, 1 piece
3. Network cable, 8-core 1.5 meters, 1 piece
4. Factory number and product certificate: affixed to the back panel of the phone
5. Quality assurance card, 1 copy; Product user manual, 1 copy

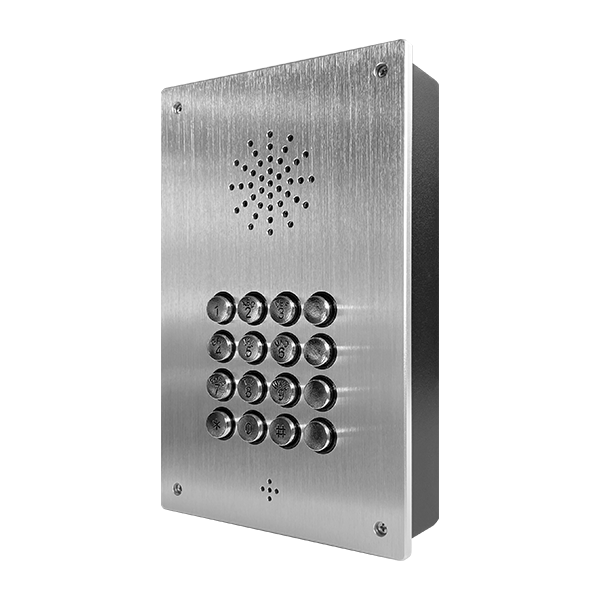

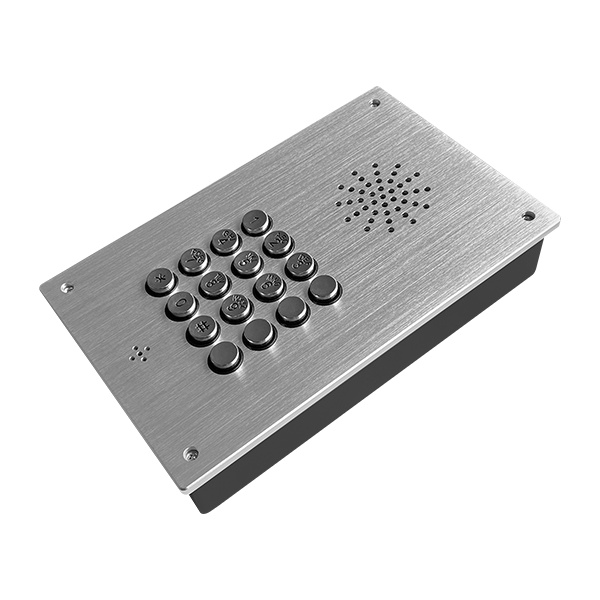

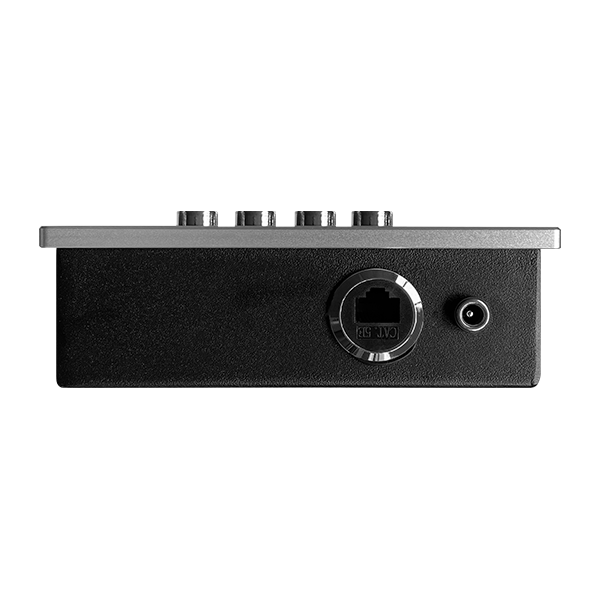

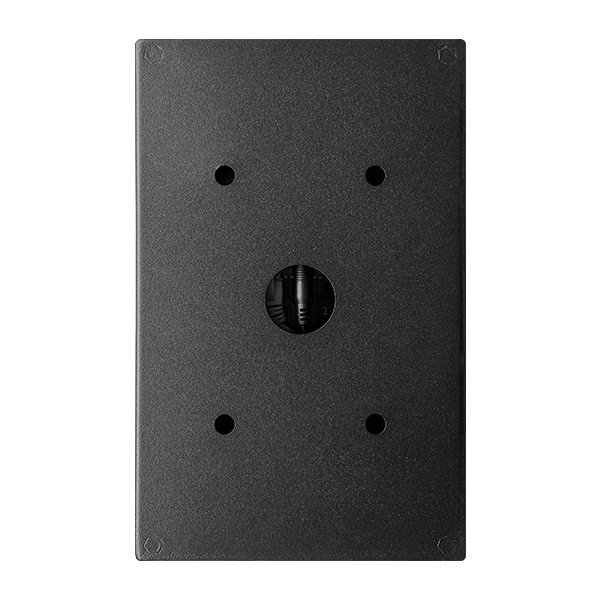

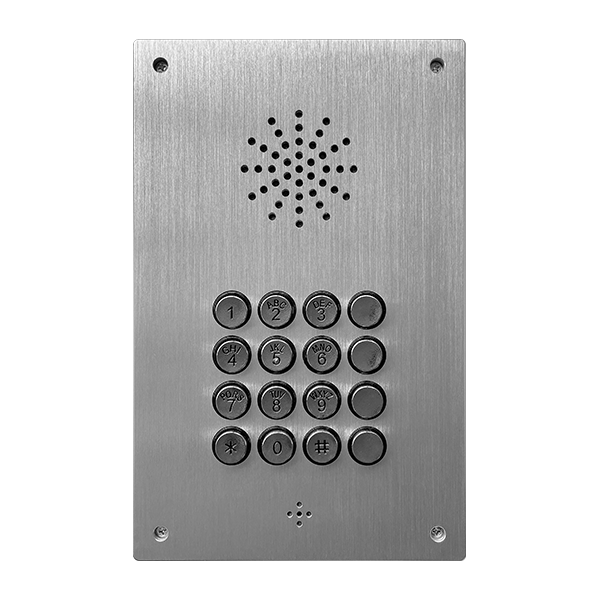

Product display
