Product highlights
1. Virtual programmable keys - 4 pages can be dynamically displayed, each page can be set to display the status of 28 DSS keys, and up to 112 DSS keys can be customized. Each DSS key can be set as Line/BLF/speed dial extension, etc.
2. Gigabit Ethernet - adaptive 10/100/1000Mbps network port, providing high-speed network transmission and supporting PoE power supply. □ √ 10.1-inch color screen design, bringing users a better user experience, convenient operation and within reach.
3. It supports H.264 video decoding, can bind the camera, azimuth video access control, accept video calls, view the video at the access control end through the phone's main screen, and realize remote door opening and interconnection.
4. Modern simple appearance, cost-effective design concept and high-resolution color display screen provide rich visual experience. □ √ High compatibility - compatible with mainstream IP PBX/soft switch/IMS platforms based on SIP, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, etc.

Phone function
 Local telephone book (2000 pieces)
 Network phone book (supporting XML/LDAP, 2000 pieces)
 Contact/incoming call intelligent search
 Call records (1000 missed calls/incoming calls/outgoing calls)
 Black list/white list
 Screen saver standby
 Voice message (MWI)
 User defined DSS key
 Network time synchronization
 Built in Bluetooth 5.0 module: connect Bluetooth headset/mobile phone Bluetooth
 Built in Wi Fi
 2.4GHz, 802.11 b/g/n  5GHz, 802.11 a/n/ac  Recording/video function
 Action URL / Active URI
 uaCSTA
 Dialing rules
 SIP hotspot
 Differentiate ringing
 Customized ringtones
 Multicast

Physical specifications
 Color: dark gray
 Main screen x1: 10.1 inch (1280x800) color touch screen
 Physical key x5: Volume -/Volume+/Home/Handsfree/Return
 HD handle (RJ9) x1
 Standard RJ9 handle curve x1
 1.5M CAT5 cable x1
 Gooseneck microphone x1
 Unidirectional microphone
 Frequency response: 20Hz~20KHz  Signal to noise ratio: ≥ 60 dB 1kHz at 1 Pa  telephone support x1
 RJ9 interface x2: handle x1, headset x1
RJ45 interface x2: network x1, PC x1 (network bridge mode)
 USB2.0 interface x1: Standard A x1, connecting U disk
 Safety keyhole x1
 Power supply: 5V/2A or PoE
 Power consumption (PoE): 2W~9.77W
 Power consumption (power adapter): 1.2W~7.75W
 Working temperature: 0~45 ℃
 Relative humidity: 10~95%
 Installation mode: desktop type

Product size
Desktop type (angle 1): 309 x 214 x 187mm
Desktop type (angle 2): 309 x 226 x 167 mm
 Package size: 323 x 301 x 71mm
 Outer box size: 624 x 383 x 348mm (10 sets)

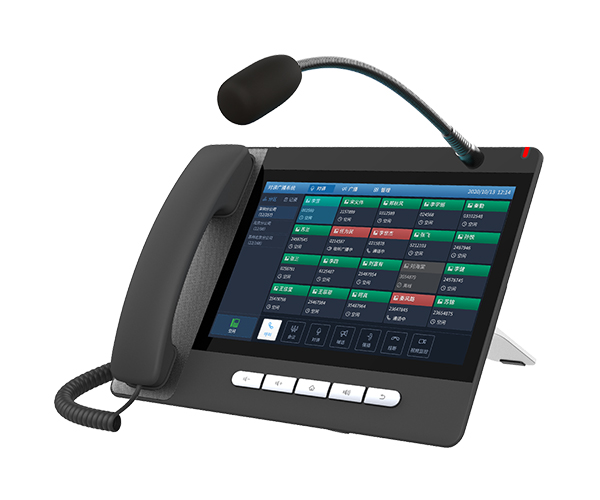

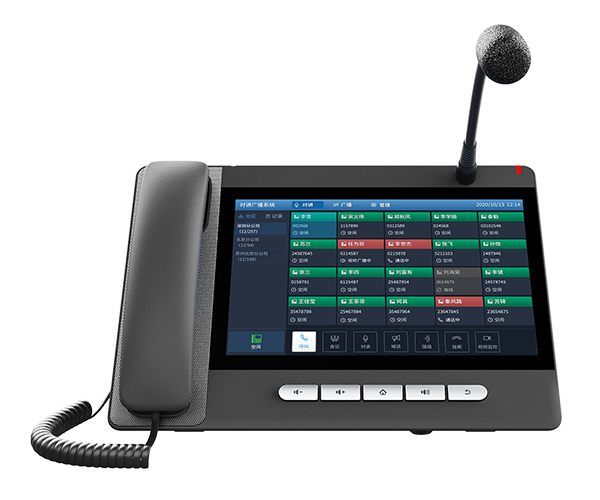

Product pictures
