IP network version
Explosion-proof IP waterproof amplifying telephone
Product No.AFT-BG-02FWK
Connection method: network cable
Shell material: aluminum alloy shell
Surface treatment: high temperature anti-static spraying
Color: yellow
Size: 320×255×138mm
Protection level: IP68
Explosion-proof grade:Ex ib mb IIC T6 Gb
Speaker power: 30W
Adaptation temperature: -40-70℃
Relative humidity: ≤95%

Product details

product description
The explosion-proof IP waterproof amplifying telephone set supports the standard SIP protocol, which can be effectively compatible with commonly used IPPBX and network dispatching platforms in the market. It is specially designed for subway tunnels, underground pipe corridor tunnels, highway tunnels, mines, power plants, steel plants, ports, Special telephones developed in high humidity and high dust environments such as ships and electrolysis workshops are suitable for long-term installation in various harsh environments. They are waterproof, moisture-proof, dust-proof, cold-proof, frost-resistant, high-temperature resistant, oxidation-resistant, and corrosion-resistant. Anti-violent percussion and other characteristics.

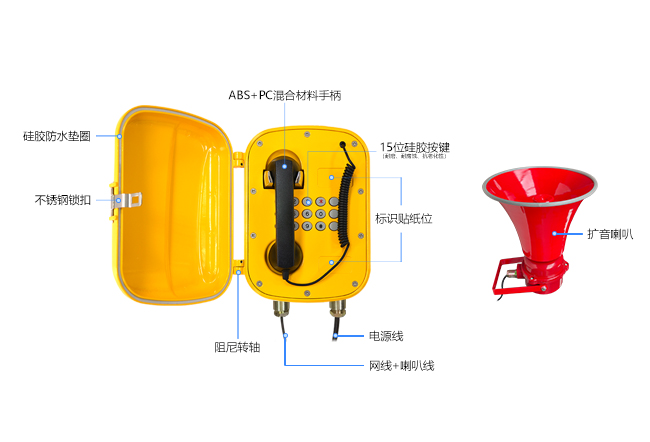

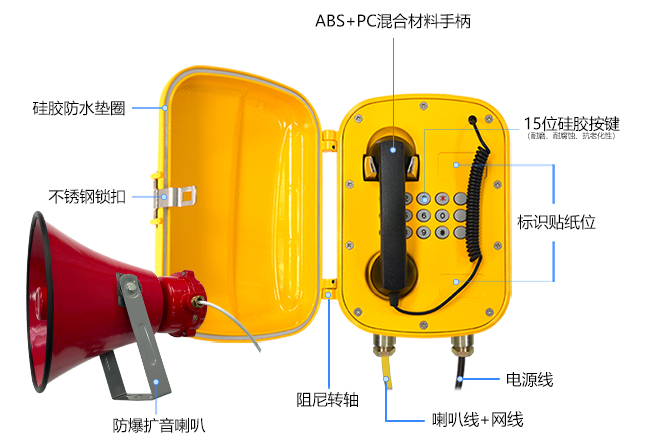

Features
1. Aluminum alloy material, formed by more than 1,000 tons of die-casting machine, with high density, light weight, with the characteristics of cold resistance, anti-oxidation, anti-corrosion, anti-violent percussion, etc.;
2. The handle is made of German Bayer ABS+PC alloy material, and adopts an integrated evacuated molding structure. Military-grade transmitter and receiver are selected internally, and are equipped with permanent magnets. It has the characteristics of explosion-proof, waterproof, moisture-proof, dust-proof, anti-noise, cold-proof, frost-proof, and anti-violent percussion;
3. The hook is made of zinc alloy stamping, after polishing, electroplating and other surface treatment processes, the back is packaged with imported reed switches from abroad, which can be used with the built-in permanent magnet magnet in the handle to switch between off-hook and on-hook. The hook has the characteristics of anti-cold, anti-freeze, anti-oxidation, anti-corrosion, and anti-salt spray;
4. The buttons are made of anti-aging silicone material, professionally designed for waterproof and dustproof, matching gold-plated PCB boards, good hand feeling, good electrical performance, and service life ≥ 500,000 times;
5. The phone mainboard adopts an industrial-grade IP mainboard, and reserves a wealth of signal stem nodes to facilitate linkage with surrounding external devices;
6. The phone shell adopts multiple waterproof designs, and all incoming lines are sealed with professional anti-aging waterproof electronic glue, and the overall protection level of the phone reaches IP68;
7. The protection grade of the loudspeaker and the sound and light warning light is IP65, and the explosion-proof grade is Exd IIC T6. It has the characteristics of waterproof, explosion-proof, and moisture-proof, and can be used in the open air;
8. The whole telephone set has passed the national explosion-proof level test, and the explosion-proof level:Ex ib mb IIC T6 Gb






Phone function introduction (due to the high integration of the motherboard, please confirm the specific functions before leaving the factory)
1. Amplification function: When the phone is in the called state, the ringing sound will be amplified and transmitted through the speaker. For example, after ringing for 3-5 times, if no one answers, the phone will automatically answer and the calling voice will be heard. Amplify through loudspeaker to realize live broadcast;
2. Ordinary dialing: After picking up the phone, dial by the keyboard;
3. One-key dialing: Log in to the phone device page, and set the designated buttons as one-key speed dialing;
4. Automatic dialing: After picking up the phone, the phone will automatically dial a set of pre-stored numbers;
5. Point-to-point call: support IP address point-to-point call, you can directly enter the IP address of the corresponding IP phone in the local area network to make a point-to-point call;
6. Setting of dialing rules: You can set dialing rules according to your needs, such as dialing "1" to automatically call to the designated IP address (192.168.0.201) or designated number (13011001100);
7. IP address broadcast: Lift the handle, long press the "#" key, the phone will automatically broadcast the IP address of the phone, and then enter the phone settings page to configure the functions according to the broadcast IP address;
8. SIP line support: this phone can support up to two SIP line registrations, that is, one phone can support up to two SIP account registrations;
9. Volume adjustment: Enter the phone background, you can adjust the ringing volume and call volume;
10. Network support: support IPV4 and IPV6 configuration, support DHCP and static IP address setting;
11. POE power supply: support POE network cable power supply, but need front-end equipment to provide POE power output function.
12. Linkage function: This phone reserves a wealth of signal opening nodes, which can realize linkage with surrounding devices;
13. Support OEM OEM service, LOGO logo and packaging instructions can be customized according to requirements;
14. More functions can be customized according to requirements. Please communicate with the company's sales staff in advance to ensure that the phone can meet your needs.





Specific parameters







Schematic





Installation diagram




a. Use the matching M8 bolts to fix the phone on the installation backplane;
b. Drill 4 Φ10 holes (225.5*140mm) on the wall according to the hole positions shown on the installation back plate, and then insert the explosive screws into the holes;
c. Fix the phone and the installation back plate on the wall with matching nuts;
d. According to the outlet label, connect the power cord, network cable, and speaker cable (speaker cable) respectively;
E. Fix the loudspeaker in a suitable position, and the installation is complete.







Product packaging specifications
Specification: 1 set/box
Gross weight: 8.0 KG
Net weight: 7.0KG
Packing: EPE, carton
