IP network version
IP waterproof amplifying telephone
Product No.AFT-BG-02WK
Connection method: network cable
Shell material: aluminum alloy shell
Surface treatment: high temperature antistatic spray
Color: yellow
Size: 320 × 255 × 138mm
Protection level: IP68
Speaker power: 30W
Adapted temperature: -40-70 ℃
Relative humidity: ≤95%

Product details

product description
The IP waterproof amplifying telephone supports the standard SIP protocol, which can be effectively compatible with commonly used IPPBX and network dispatching platforms in the market. It is specifically designed for subway tunnels, underground pipe corridor tunnels, highway tunnels, mines, power plants, steel plants, ports, ships, Special telephones developed in high humidity and high dust environments such as electrolysis workshops are suitable for long-term installation in various harsh environments. They are waterproof, moisture-proof, dust-proof, cold-proof, frost-resistant, high-temperature resistant, anti-oxidation, anti-corrosion, and anti-violence. Percussion and other characteristics.








产品特点

1.   铝合金材质,经过1000多吨压铸机成型,密度大、重量轻,具备防寒抗冻、抗氧化、抗腐蚀、抗暴力敲击等特点;

2.   手柄选用德国拜耳ABS+PC合金材料,采用一体抽空成型结构。内部选用军工级送受话器,并装有永磁磁钢。具备防爆、防水、防潮、防尘、抗噪、防寒、抗冻、抗暴力敲击等特性;

3.   挂钩选用锌合金冲压成型,经过抛光、电镀等表面处理工序,背面封装国外进口干簧管,可以与手柄内置的永磁磁钢配合实现摘机/挂机切换。挂钩具备防寒、抗冻、抗氧化、抗腐蚀、抗盐雾等特性;

4.   按键精选抗老化硅胶材质,经过专业防水防尘设计,匹配镀金PCB板,手感好、电气性能佳,使用寿命50万次;

5.   电话主板采用工业级IP主板,并预留有丰富的信号干节点,以便于与周围的外部设备进行联动;

6.   话机外壳采用多重防水设计,所有进线位置均使用专业抗老化防水电子胶密封,话机整体防护等级达IP68;

7.   扬声器与声光警灯防护等级为IP65,防爆等级为Exd IIC T6,具备防水、防爆、防潮等特点,可露天使用

8.   电话机整机经过国家防爆等级检测,防爆等级:ExnA ic IIC T6 G





Phone function introduction (due to the high integration of the motherboard, please confirm the specific functions before leaving the factory)
1. Amplification function: When the phone is in the called state, the ringing sound will be amplified and transmitted through the speaker. For example, after ringing 3-5 times, there is still no one to answer, the phone will automatically answer and the caller's voice will be heard. Amplify through the speaker to achieve live broadcast;
2. Ordinary dialing: After picking up the phone, dial by the keyboard;
3. One-key dialing: Log in to the device page of the phone, and set the designated buttons as one-key speed dialing;
4. Automatic dialing: After picking up the phone, the phone will automatically dial a set of pre-stored numbers;
5. Point-to-point call: support IP address point-to-point call, you can directly enter the IP address of the corresponding IP phone in the local area network to make a point-to-point call;
6. Setting of dialing rules: You can set the dialing rules according to your needs, such as dialing "1" to automatically call to the designated IP address (192.168.0.201) or designated number (13011001100);
7. IP address broadcast: Lift the handle, long press the "#" key, the phone will automatically broadcast the IP address of the phone, and then enter the phone settings page to configure the functions according to the broadcast IP address;
8. SIP line support: this phone can support up to two SIP line registrations, that is, one phone can support up to two SIP account registrations;
9. Volume adjustment: Enter the phone background, you can adjust the ringing volume and call volume;
10. Network support: support IPV4 and IPV6 configuration, support DHCP and static IP address setting;
11. POE power supply: support POE network cable power supply, but need front-end equipment to provide POE power output function.
12. Linkage function: This phone reserves a wealth of signal opening nodes, which can realize linkage with surrounding devices;
13. Support OEM OEM service, LOGO logo and packaging instructions can be customized according to requirements;
14. More functions can be customized according to requirements, please communicate with the company's sales staff in advance to ensure that the phone can meet your needs.








Specific parameters







Schematic

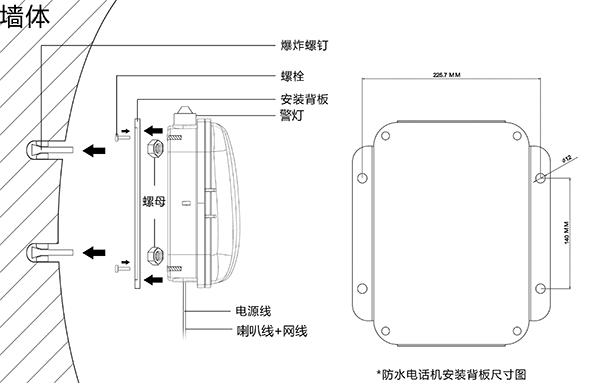

Installation diagram




a. Use the matching M8 bolts to fix the phone on the installation backplane;
b. Drill 4 Φ10 holes (225.5*140mm) on the wall according to the hole positions shown on the installation back plate, and then insert the explosive screws into the holes;
c. Fix the phone and the installation backplane on the wall with matching nuts;
d. According to the outlet label, connect the power cord, network cable and speaker cable (speaker cable) respectively;
E. Fix the loudspeaker in a suitable position, and the installation is complete.







Product packaging specifications
Specification: 1 set/box
Gross weight: 8.0 KG
Net weight: 7.0KG
Packing: EPE, carton
