Wall mounted series
IP one-key calling video intercom phone
Product No.AFT-BG-11S
Connection method: network cable
Shell material: 304 stainless steel
Color: brushed natural color
Size: 164×104×35mm
Protection: IP54
Adaptation temperature: -20~50°C
Relative humidity: 10%-90%

Product details

product description
IP one-key calling video intercom phone is a cost-effective SIP intercom product specially developed for the needs of industry users. It has exquisite appearance, powerful functions, and integrates intelligent security, audio intercom and broadcast functions into one, and is cost-effective. It supports wall-mounted installation, suitable for indoor and outdoor scenes, and can provide users with high-quality communication intercom services.





Features
1. 304 stainless steel material, fine-grained surface treatment, with water-proof, dust-proof, moisture-proof, anti-corrosion, anti-violent percussion and other characteristics;
2. The emergency button is a self-resetting button produced by the most professional manufacturer in China. It is made of 304 stainless steel and has the characteristics of waterproof, moisture-proof and dust-proof;
3. The phone motherboard adopts standard SIP protocol and supports IPCALL function;
4. The overall protection level of the phone is: IP54, if you need to install it in the open air, you need to install a rain cover.






Phone function introduction
1. Two SIP lines
2. Built-in high-definition camera, clear video image
3. Auto Answer
4. Built-in 1 short circuit input
5. Built-in 1 short-circuit output, short-circuit output controlled mode (four types): remote DTMF, remote server command, short-circuit input linkage, call status
6. Intercom function
7. Support external power supply
8. Wall-mounted installation
9. High compatibility-compatible with SIP-based mainstream IP PBX/softswitch/IMS platforms, such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya, etc.
10. System online management and upgrade






Video characteristics
Sensor: 1/4” color CMOS
Pixel: 1 million
Video encoding: H.264
Resolution: 720P@30fps
Viewing angle: 90°
Minimum illumination: 0.1Lux

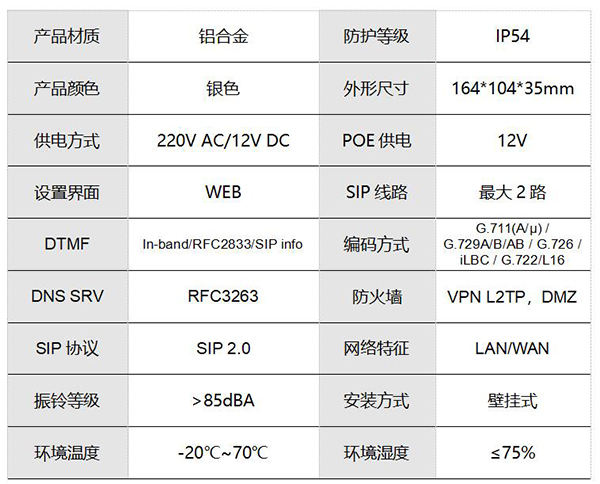

Specific parameters

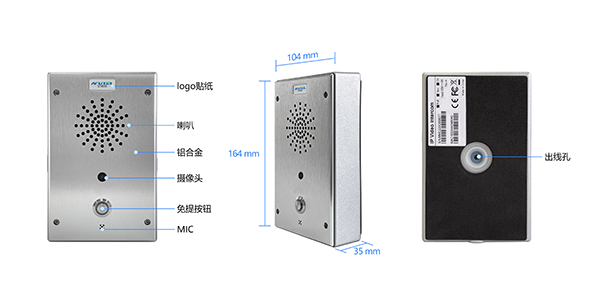

Schematic




Product packaging specifications
Specification: 1 set/box
Gross weight: 1.0 KG
Net weight: 0.6 KG
Packing: EPE, carton
