Phone Line Version
waterproof sound and light alarm phone
Product No.AFT-BG-02KL
Connection method: telephone line
Shell material: aluminum alloy shell
Surface treatment: high temperature anti-static spraying
Color: yellow
Size: 320×255×138mm
Protection level: IP68
Adaptation temperature: -40-70℃
Relative humidity: ≤95%

Product details

product description
The waterproof loudspeaker phone is compatible with many brands of program-controlled telephone switches on the market. It is specially designed for high humidity such as subway tunnels, underground pipe corridor tunnels, highway tunnels, mines and mines, power plants and power stations, steel plants, ports, ships, electrolysis workshops, etc. , The special telephone developed for high dust environment is suitable for long-term installation in various harsh environments. It has the characteristics of waterproof, moisture-proof, dust-proof, cold-proof, frost-resistant, high-temperature resistance, oxidation resistance, corrosion resistance, and violent percussion resistance.

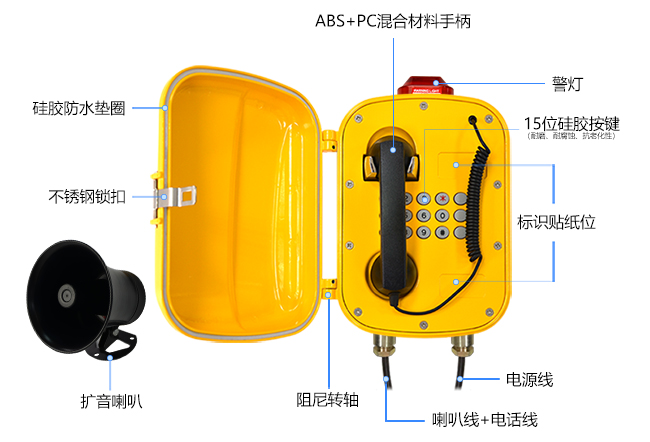

Features
1. Aluminum alloy material, formed by more than 1,000 tons of die-casting machine, with high density and light weight, with the characteristics of cold and frost resistance, oxidation resistance, corrosion resistance, and violent percussion resistance;
2. The handle is made of German Bayer ABS+PC alloy material, and adopts an integrated evacuated molding structure. Military-grade transmitter and receiver are selected internally, and are equipped with permanent magnets. It has the characteristics of explosion-proof, waterproof, moisture-proof, dust-proof, anti-noise, cold-proof, frost-proof, and anti-violent percussion;
3. The hook is made of zinc alloy stamping, after polishing, electroplating and other surface treatment processes, the back is encapsulated with imported reed switches from abroad, which can be used with the built-in permanent magnet magnet in the handle to switch between off-hook and on-hook. The hook has the characteristics of anti-cold, anti-freeze, anti-oxidation, anti-corrosion, and anti-salt spray;
4. The buttons are made of anti-aging silicone material, professionally designed for waterproof and dustproof, matched with gold-plated PCB boards, good hand feeling, good electrical performance, and service life ≥ 500,000 times;
5. The phone motherboard adopts an industrial-grade IP motherboard, and reserves a wealth of signal stem nodes to facilitate linkage with surrounding external devices;
6. The phone shell adopts multiple waterproof designs, and all incoming lines are sealed with professional anti-aging waterproof electronic glue, and the overall protection level of the phone reaches IP68;
7. The protection grade of the loudspeaker and the sound and light warning light is IP65, and the explosion-proof grade is Exd IIC T6. It has the characteristics of waterproof, explosion-proof, and moisture-proof, and can be used in the open air;
8. The whole telephone set has passed the national explosion-proof level test, and the explosion-proof level: ExnA ic IIC T6 G




Phone function introduction (due to the high integration of the motherboard, please confirm the specific functions before leaving the factory)
1. Amplification function: When the phone is in the called state, the ringing sound will be amplified and transmitted through the speaker. For example, after ringing for 3-5 times, if no one answers, the phone will automatically answer and the calling voice will be heard. Amplify through the speaker to achieve live broadcast;
2. Sound and light alarm function: when the phone is in the called state, the ringing sound and light warning light will be emitted, accompanied by red light rotating and flashing. It is suitable for places with loud noise and dark environment; when the phone handle is lifted After the machine answers, the sound and light warning lights will automatically cut off;
3. Ordinary dialing: After picking up the phone, dial by the keyboard;
4. One-touch dialing: The phone supports storage of up to three groups of numbers, and the numbers are permanently stored after they are set, and will not be lost after power failure. When in use, "off-hook -> select the key to store the number" to dial out;
5. Automatic dialing: After picking up the phone, the phone will automatically dial a set of pre-stored numbers;
6. Redial and flashing: After off-hook, press the "Redial" button to dial the last dialed number. During the call, press the "Flash" button to return to the off-hook waiting for dialing state;
7. Auto hang up: After the call is over, the phone will automatically detect the busy tone signal and inverse limit signal of the switch, and hang up after several confirmations;
8. Support OEM OEM service, LOGO logo and packaging instructions can be customized according to requirements;
9. More functions can be customized according to requirements, please communicate with the company's sales staff in advance to ensure that the phone can meet your needs.




Specific parameters





Schematic





Installation diagram



a. Use the matching M8 bolts to fix the phone on the installation backplane;
b. Drill 4 Φ10 holes (225.5*140mm) on the wall according to the hole positions shown on the installation back plate, and then insert the explosive screws into the holes;
c. Fix the phone and the installation backplane on the wall with matching nuts;
d. Connect the red and black wires to the speakers (speakers), and fix the speakers;
e. Connect the power cord to the 220V AC power supply (if you need to connect to the 12V DC power supply, please communicate first);
f. Finally, connect to the telephone line.




Product packaging specifications
Specification: 1 set/box
Gross weight: 8.0 KG
Net weight: 7.0KG
Packing: EPE, carton
