Video introduction(If the video does not come out, please refresh the page)
It is only necessary for users to go to the business hall to get a mobile phone card, insert the mobile phone card into the card, insert the CTO into the telephone card, lift the microphone, enter the number to dial, and dial it according to the OK key. (please confirm the direction of card insertion and insert the chip upward.)

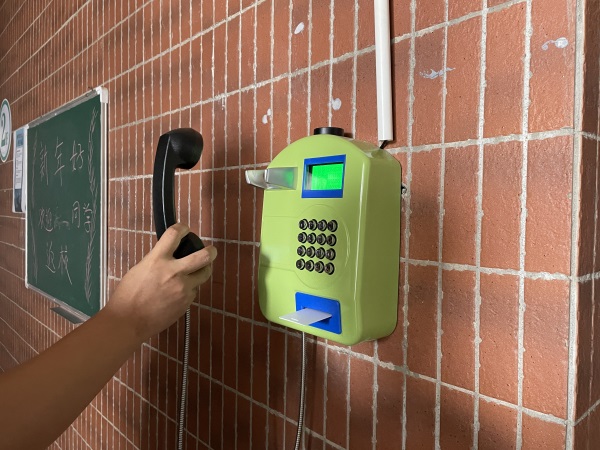

Telephone application
Stations, campuses, docks, airports, scenic spots, squares, shopping malls, community properties, municipal engineering, regulatory complaints, convenient services, hospitals, vehicle management offices and other places.
Highlights of telephone function
√ external card, supporting hot plug.
√ China Unicom / China Mobile supports 2G, 3G and 4G, while China Telecom supports 4G and needs to open volte.
√ adjustable functions inside the phone: volume setting, display setting, disable time, no dialing number, maximum call duration, network lock and card lock, password setting
Main parameter
Executive standard
YD/T1626-2007
Overall dimension
301mm×215mm×85mm
(long × wide × high)
Net weight
3.2kg
Power supply mode
220V±20%/50Hzalternating current
working temperature
-15℃~+55℃
relative humidity
10%~95%
atmospheric pressure
86~106kPa
Ambient noise
≤60dB
Mean time between failures
Technical requirements and test methods for fixed radiotelephones
>1000 hours
Telephone structure diagram
Installation mode
a. Drill 3 holes on the wall according to the size of the installation hole Φ 6 holes (185 × 156mm) and insert the rubber plug;
b. Open the telephone with a key and pass the power cord through the threading hole;
c. Install the gasket with the supporting self tapping screw, pass through the telephone back plate, and fix the back plate on the rubber plug;
d. Plug the power cord into the power socket of the main board, buckle the upper cover of the telephone on the back board, lock it with a key, turn on the power and start it.
Ferrule introduction
Ferrule size |
86mm x 54mm x 1mm (Length x width x thickness) |
Ferrule material |
ABS |
Sticker size |
51.8mm x 75.2mm (Length x width) |
Physical display of ferrule
Product packaging specification
Specification: 1 set / box
Gross weight: 4.2 kg
Net weight: 3.1 kg
Packing: pearl cotton, carton
