product description
AFT-BG-50 emergency telephone can be compatible with many brands of program-controlled telephone exchanges on the market. It is an emergency help telephone specially designed for van elevators, clean rooms of pharmaceutical factories, dust-free workshops and other places. Features such as alarm, one-key circular dialing, one-key automatic intercom and so on. It is an essential communication device for emergency help in elevators, and it is also a convenient communication device for clean room intercom.
Features
1. Made of 304 stainless steel with fine-grained surface treatment, it has the characteristics of waterproof, dust-proof, moisture-proof, anti-corrosion, anti-violent knocking, etc.;
2. The emergency button is a self-replicating light-emitting button produced by the most professional manufacturer in China. It is made of 304 stainless steel and has the characteristics of waterproof, moisture-proof and dust-proof;
3. The mainboard of the phone adopts imported single chip microcomputer and the company's self-grinding chip development. All components adopt SMT chip technology, which is rich in functions and high in integration. Two dry node interfaces, one on and one off, are reserved to enhance communication with external devices. linkage;
4. The keys are designed with a 12-bit matrix, and the keys are made of high-quality zinc alloy material. After stamping, polishing, electroplating, oiling (gluing) and other processes, it has the characteristics of dustproof, anti-corrosion, anti-oxidation, etc. Service life ≥ 500,000 times;
5. The overall protection level of the phone is: IP54, if you need to install it in the open air, you need to install a rain cover;
6. 2-speed sound volume adjustment mode, which can be adjusted according to your needs.
Introduction of phone functions (Note: some functions can only be selected from two, please communicate with the marketing department in advance)
1. Automatic dialing: After pressing the hands-free button (turn on), the phone automatically dials the emergency number, such as 110;
2. Circular dialing: After pressing the hands-free button (power on), the first group of numbers will be dialed automatically. If the line is busy or no answer, it will transfer to the second group. When the last group is still busy or no answer, Automatically switch back to the first group until someone answers or hangs up;
3. Ordinary dialing function: After pressing the hands-free button (boot), manual dialing can be performed through the 12-digit zinc alloy button;
4. Automatic hang up: After the call is over, the phone will automatically detect the switch busy tone signal and inverse limit signal, and hang up after several confirmations;
5. Linkage function: the phone reserves two open nodes, one on and one off. When the phone goes off-hook/on-hook, the two trunk nodes respectively provide two sets of pulse switch signals, one on and one off;
6. LOGO customization: LOGO logo and operation instructions can be customized according to requirements;
7. Support the customization of external dimensions and color customization.

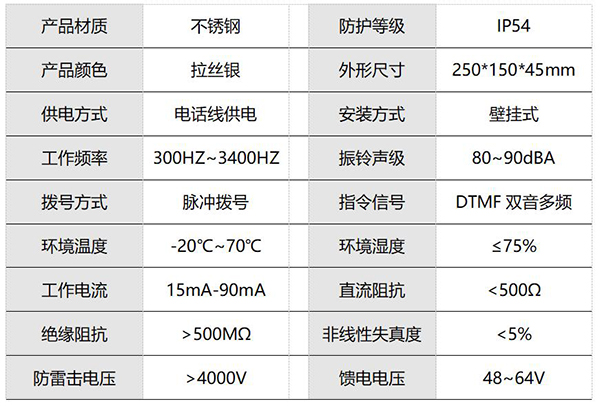

Specific parameters

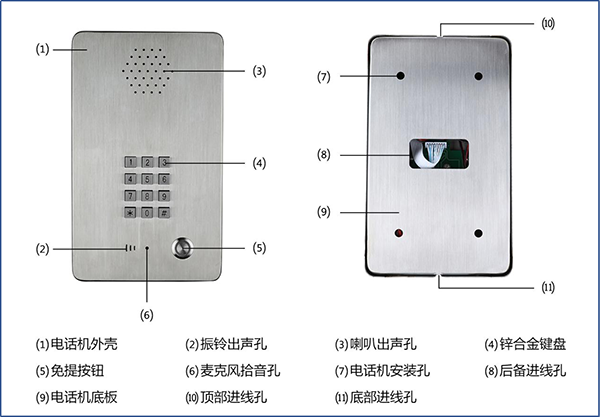

Schematic

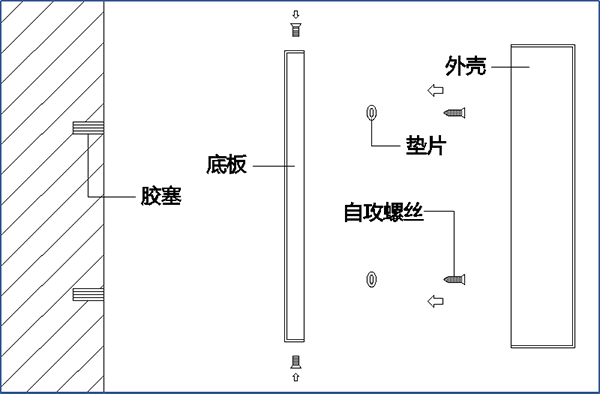

Installation diagram
a. After unpacking, unscrew the phone with a screwdriver;

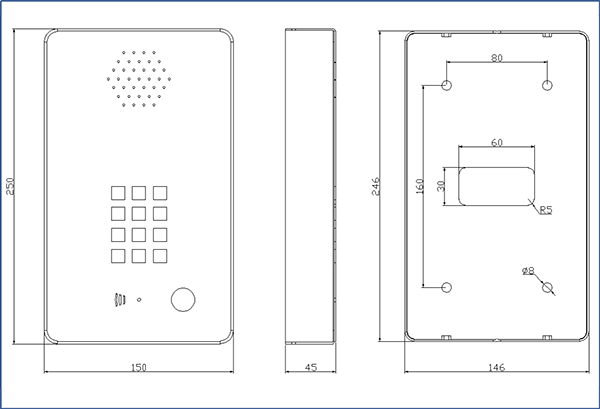

b. According to the installation holes of the bottom shell, drill 4 Φ6 holes (160*80) on the wall, and insert the rubber plugs (if it is inside the elevator, drill 4 M4 holes on the car wall, and tap tooth);
c. Use the matching self-tapping screws and washers to fix the bottom plate of the telephone set on the rubber plug (or use M4 screws and washers to fix the bottom plate of the telephone set to the car wall);
d. Connect the telephone line and store the number;
e. Fix the phone with a screwdriver.
Product Packaging Specifications
1. Emergency telephone set, 1 piece
2. Power adapter, 1 piece
3. Telephone line, 2 cores 1.5 meters, 1
4. Factory serial number and product certificate: affixed to the inner back panel of the phone
5. Warranty card, 1 copy; Product manual, 1 copy
