Product Introduction

1. Easy to use, enter the recipient’s extension number and press the pound key to dial it out,

2. During a call, the conversation can be controlled through the microphone button. Pressing the microphone button will record the conversation, while releasing the button will prevent the other party from hearing the sound, effectively avoiding environmental noise from affecting the call.

3. Support one click playback of custom audio, as well as one click calling and dialing

4. Long press the pound key to broadcast the local IP address





Main Features

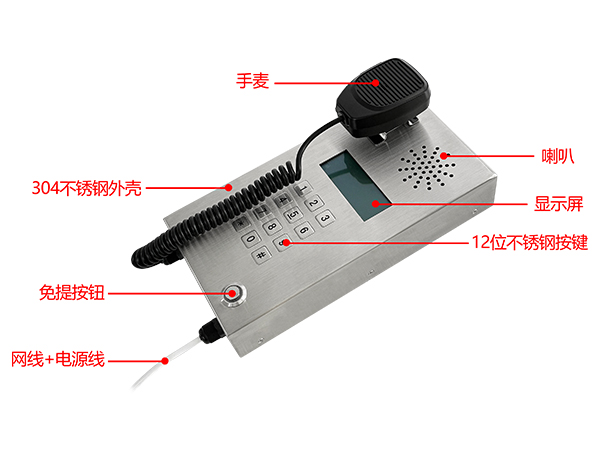

1. Made of 304 stainless steel material with fine brushed surface treatment, it has the characteristics of waterproof, dustproof, moisture-proof, corrosion-resistant, and anti violent impact;

2. The emergency button is a self resetting illuminated button produced by the most professional manufacturer in China. It is made of 304 stainless steel material and has the characteristics of waterproof, moisture-proof, dustproof, etc;

3. The telephone motherboard is developed using imported microcontrollers and chips ground by the company. All components are made using SMT surface mount technology, which has rich functions and high integration. Two dry node interfaces, one on and one off, are reserved to enhance the linkage with external devices;

4. The buttons adopt a 12 position matrix design and are made of 304 stainless steel material. After multiple processes such as stamping, polishing, drawing, and oiling (dripping), they have the characteristics of dust prevention, corrosion resistance, and oxidation resistance, with a service life of ≥ 500000 times;

5. The overall protection level of the phone is IP54. It can be wiped with a damp cloth, but cannot be soaked with water;





Introduction to Phone Functions (Note: Some functions can only be selected from two options, please communicate with the marketing department in advance)

1. Automatic response: As a called person, the phone detects the called signal and can automatically connect. The ringing time can be set by oneself;

2. IP point-to-point calling: supports IP address calling, i.e. IP address point-to-point intercom;

3. Linkage function: This phone has reserved a dry node signal, which can be linked with external devices such as cameras;

4. LOGO customization: LOGO identification and operation instructions can be customized according to requirements;

5. Support customization of external dimensions and color customization.

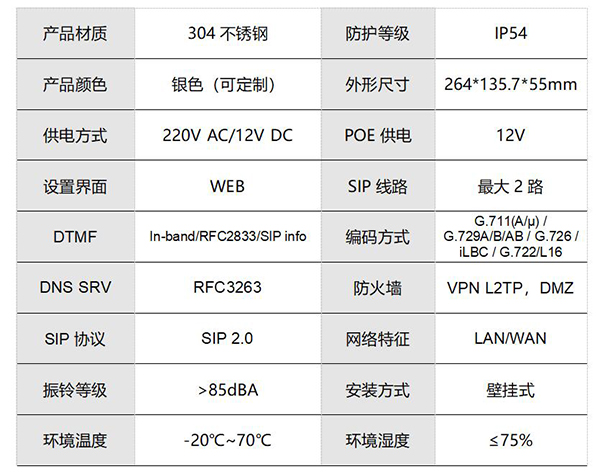

specific parameters

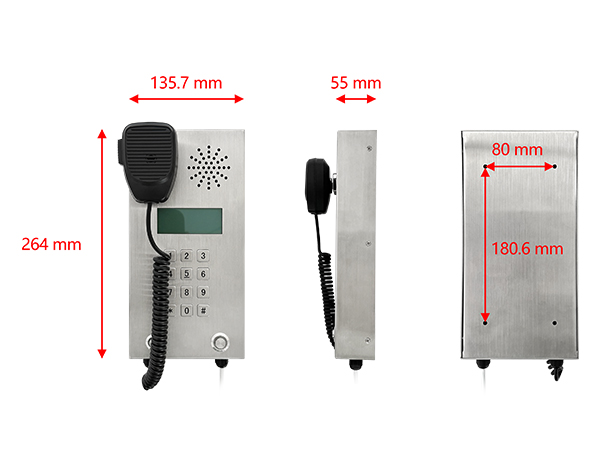

Schematic Diagram
