Product Introduction

The AFT-BG-35 emergency telephone is compatible with many brands of program-controlled telephone exchanges on the market. It is specifically designed for emergency situations such as box elevators, pharmaceutical cleanrooms, and dust-free workshops. This telephone has features such as one key automatic alarm, one key cyclic dialing, and one key automatic intercom. It is an essential communication device for emergency elevator assistance and a convenient communication device for cleanroom intercom.

Product Features

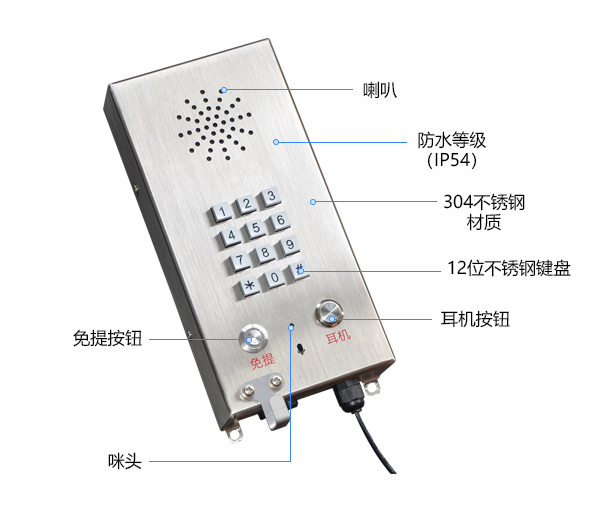

1. Made of 304 stainless steel material with fine brushed surface treatment, it has the characteristics of waterproof, dustproof, moisture-proof, corrosion-resistant, and anti violent impact;

2. The emergency button is a self resetting illuminated button produced by the most professional manufacturer in China. It is made of 304 stainless steel material and has the characteristics of waterproof, moisture-proof, dustproof, etc;

3. The telephone motherboard is developed using imported microcontrollers and chips ground by the company. All components are made using SMT surface mount technology, which has rich functions and high integration. Two dry node interfaces, one on and one off, are reserved to enhance the linkage with external devices;

4. The buttons adopt a 12 bit matrix design, with high-quality zinc alloy material selected for the button sub. After multiple processes such as stamping, polishing, electroplating, and oiling (dripping glue), they have the characteristics of dust prevention, corrosion resistance, oxidation resistance, etc., with a service life of ≥ 500000 times;

5. The overall protection level of the phone is IP54. If it needs to be installed outdoors, a rain cover must be added;

6. Two levels of sound volume adjustment mode, which can be adjusted according to needs.

Introduction to Phone Functions (Note: Some functions can only be selected from two options, please communicate with the marketing department in advance)

1. Automatic dialing: After pressing the hands-free button (power on), the phone automatically dials the emergency call number, such as 110;

2. Loop dialing: After pressing the hands-free button (power on), the first group of numbers will be automatically dialed. If the line is busy or no one answers, it will be transferred to the second group. When the last group is still busy or no one answers after dialing, it will automatically switch back to the first group until someone answers or hangs up actively;

3. Normal dialing function: After pressing the hands-free button or headphone button (power on), manual dialing can be performed through the 12 digit zinc alloy button;

4. One click emergency call: When turned on, press the emergency call button to achieve one click dialing;

5. Automatic AFK: After the call ends, this call will automatically detect the busy tone signal and reverse limit signal of the switch, confirm multiple times, and then AFK;

6. Linkage function: This phone reserves two disconnection nodes, one on and one off. When the phone is off/on hook, the two main nodes provide two sets of pulse switch signals, one on and one off, respectively;

7. LOGO customization: LOGO identification and operation instructions can be customized according to requirements;

8. Support customization of external dimensions and color customization.
